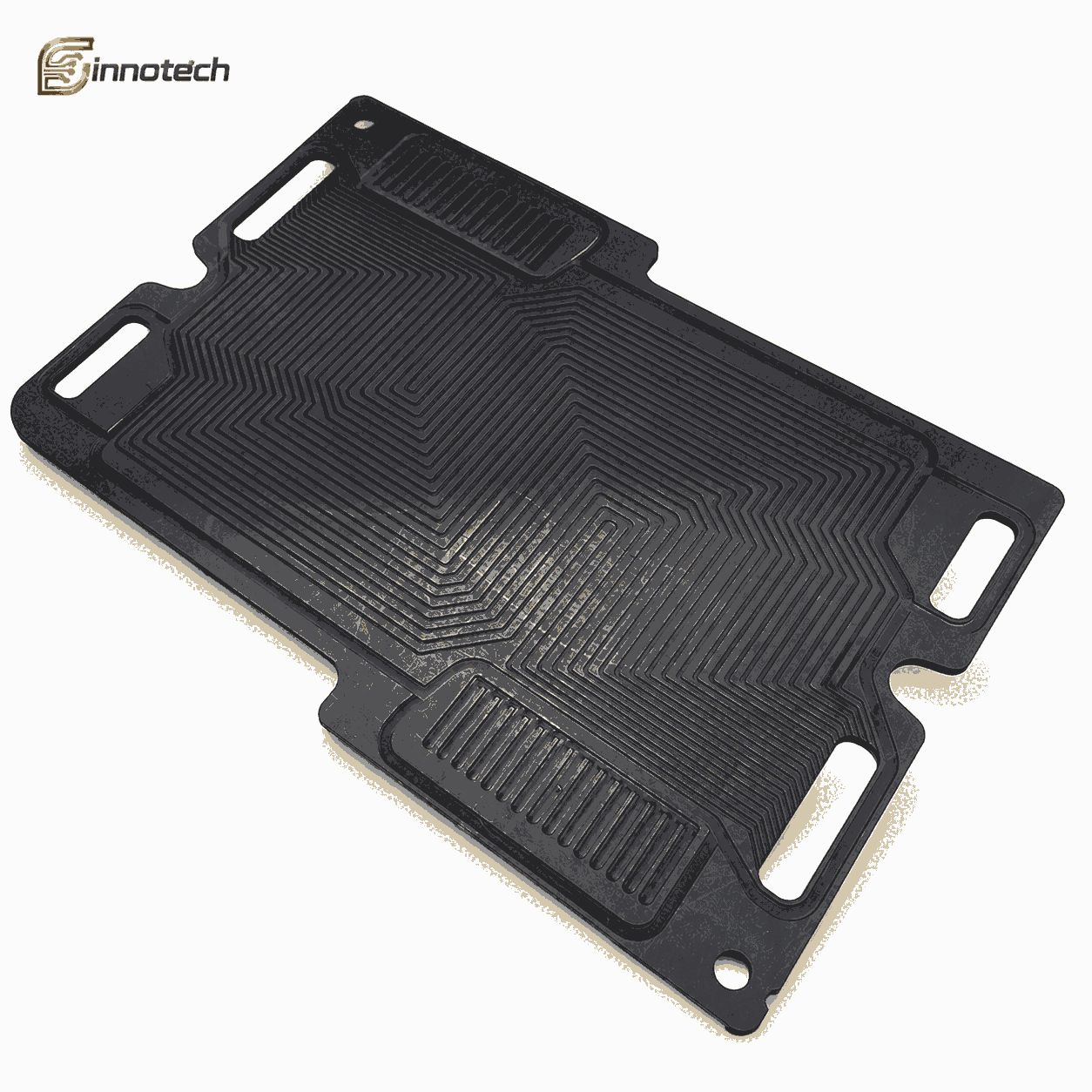

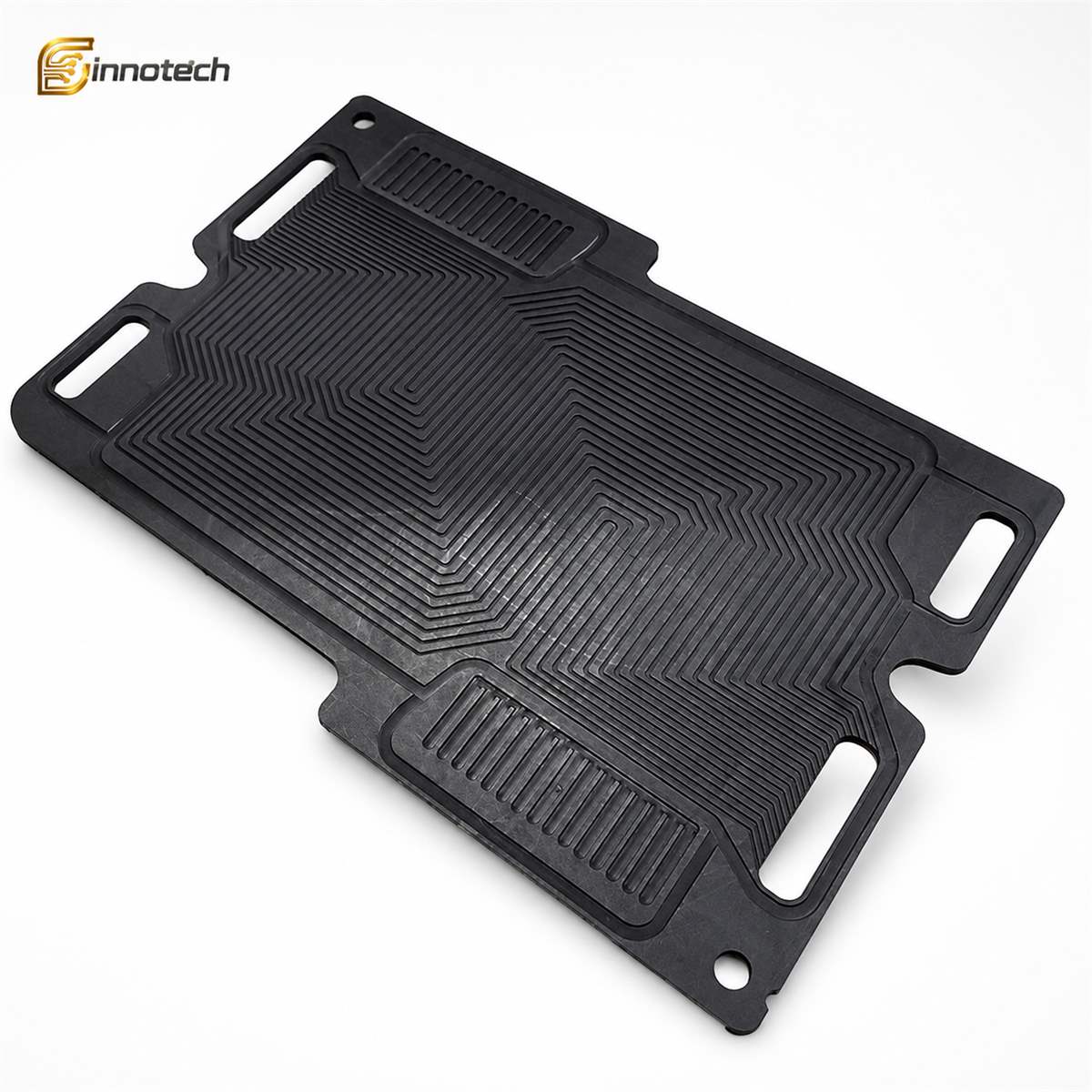

Fuel Cell Bipolar Plate is a key flow field and conductive structural component used in hydrogen fuel cells, electrolyzers, energy systems, and electrochemical equipment. It can be manufactured from metal, graphite composite, or other corrosion-resistant
Fuel Cell Bipolar Plate is a critical functional component used in hydrogen fuel cells and electrochemical energy equipment. Its main function is to enable reactant gas distribution, current collection, heat transfer, cooling management, sealing support, and structural connection within a fuel cell stack. The design and manufacturing quality of the bipolar plate directly affect power output, operating efficiency, sealing stability, and long-term system reliability.
During fuel cell operation, hydrogen, oxygen, or air must be evenly distributed through flow channels to the reaction area, while generated water and heat must be removed or distributed efficiently. Therefore, flow channel width, channel depth, flow field pattern, surface quality, flatness, electrical conductivity, and corrosion resistance are all critical. Poor flow field design may cause uneven gas distribution, local water flooding, increased pressure drop, or reduced reaction efficiency. Dimensional deviation or insufficient flatness may also affect stack assembly and sealing performance.
This product can be customized using stainless steel, titanium, titanium alloy, nickel alloy, copper alloy, graphite composite, or other materials suitable for electrochemical environments. Metal bipolar plates offer high strength, thin material design, good conductivity, and strong suitability for volume production. Titanium and titanium alloys provide excellent corrosion resistance and chemical stability for hydrogen energy systems with demanding operating conditions.
Through precision metal etching, complex flow channels, half-etched grooves, gas distribution areas, positioning holes, mounting holes, sealing grooves, and accurate outer profiles can be produced on thin metal plates. Compared with traditional mechanical processing, chemical etching is better suited for thin metal bipolar plates, complex flow field patterns, small-batch development, and high-precision structural processing. The process also helps reduce mechanical stress deformation, maintaining better flatness, dimensional consistency, and flow channel stability.
Innoetch supports the custom development of different types of fuel cell bipolar plates and metal flow field components based on customer drawings, including hydrogen fuel cell bipolar plates, electrolyzer bipolar plates, metal flow field plates, gas distribution plates, liquid cooling plates, flow guide plates, reaction flow channel plates, and custom precision metal structural parts. Products can also be supplied with single-sided etching, double-sided etching, half-etched structures, surface cleaning, deburring, passivation, coating, or other post-processing services according to customer requirements.
This type of product is widely used in hydrogen fuel cell systems, water electrolysis hydrogen production equipment, energy storage systems, automotive fuel cells, portable power systems, laboratory testing devices, liquid cooling systems, and high-end industrial energy equipment. For customers who require high-precision flow fields, stable electrical conductivity, corrosion-resistant materials, and customized structures, precision etched fuel cell bipolar plates provide a reliable, flexible, and scalable metal manufacturing solution for engineering development and volume production.
Innoetch provides custom fuel cell bipolar plate and metal flow field plate manufacturing services using precision metal etching technology to produce high-precision, stable-channel, conductive, and corrosion-resistant stainless steel, titanium alloy, and other metal bipolar plate products.
Fuel Cell Bipolar Plate is widely used in precision metal etching applications where clean edges, tight tolerances, complex patterns and stable performance are required. Typical industries include electronics, semiconductors, sensors, fuel cells, acoustic components, EMI shielding, thermal management and precision mechanical parts.
Fuel Cell Bipolar Plate is a precision metal component manufactured by photochemical etching for applications requiring accurate dimensions, smooth edges and reliable performance.
Common materials include stainless steel, copper, brass, nickel silver, titanium, aluminum and other thin metal sheets depending on the application requirements.
INNOETCH can process thin metal materials from approximately 0.02 mm to 1.5 mm, depending on material type, part structure and tolerance requirements.
For many precision etched parts, tolerances can reach ±0.01 mm to ±0.05 mm, depending on material thickness, design complexity and production volume.
Chemical etching does not require expensive hard tooling and can produce fine patterns, complex shapes and burr-free edges without mechanical deformation.
Yes. INNOETCH supports custom drawings, materials, thicknesses, hole patterns, surface finishes, dimensions and prototype-to-mass-production requirements.
2D drawings, DXF files, DWG files, STEP files, material requirements, thickness, tolerance, quantity and application details are recommended for accurate quotation.
You can send your drawings and technical requirements to INNOETCH. Our engineering team will review the design and provide a quotation.
