Application case for ultra-thin etched stainless steel hinge support plates used in foldable phone-level structural designs.
Foldable smartphones place extreme demands on hinge and screen support structures. A hinge support plate must be thin enough to fit inside a compact folding body, strong enough to stabilize the screen area, and precise enough to move with the hinge without creating interference.
Huawei’s foldable phone product line shows how important compact folding form, hinge durability, and reinforced internal structures have become in modern mobile devices. However, the detailed material stack of each product is not fully disclosed publicly. Therefore, this application case focuses on an engineering solution suitable for Huawei foldable phone-level structural requirements.

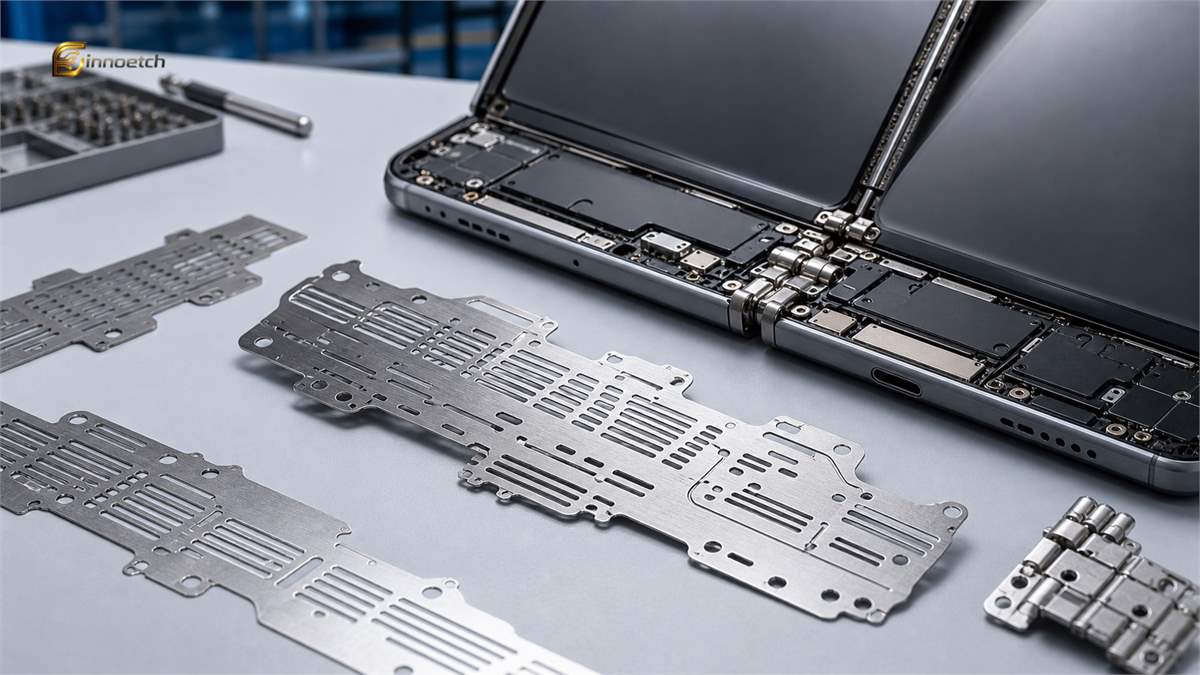

In this solution, ultra-thin stainless steel, commonly known in Chinese manufacturing as “hand-tearable steel,” is processed by chemical etching to form a precision hinge support plate.
Ultra-thin stainless steel offers an excellent balance of strength, elasticity, flatness, and corrosion resistance. For foldable screen support and hinge reinforcement, it can help distribute mechanical stress while keeping the overall module thin.
Compared with ordinary stamped metal parts, chemically etched stainless steel support plates can achieve more complex patterns without mechanical deformation. This is important for foldable phones, where every slot, bridge, mounting hole, and relief area must be carefully controlled.
Typical design goals include:
Chemical etching uses photoresist patterning and controlled metal removal to create precise features on thin stainless steel sheets. Unlike punching or laser cutting, the process does not rely on mechanical force, which helps reduce warping, burrs, and tool marks.
For foldable phone hinge support plates, Innoetch can etch:
This makes the process highly suitable for ultra-thin stainless steel parts used in compact consumer electronics.
In a Huawei foldable phone-level hinge module, the support plate may be positioned near the hinge axis, under the flexible screen support layer, or around the internal mid-frame. Its role is not only to reinforce the hinge area, but also to help maintain structural stability during opening and closing.

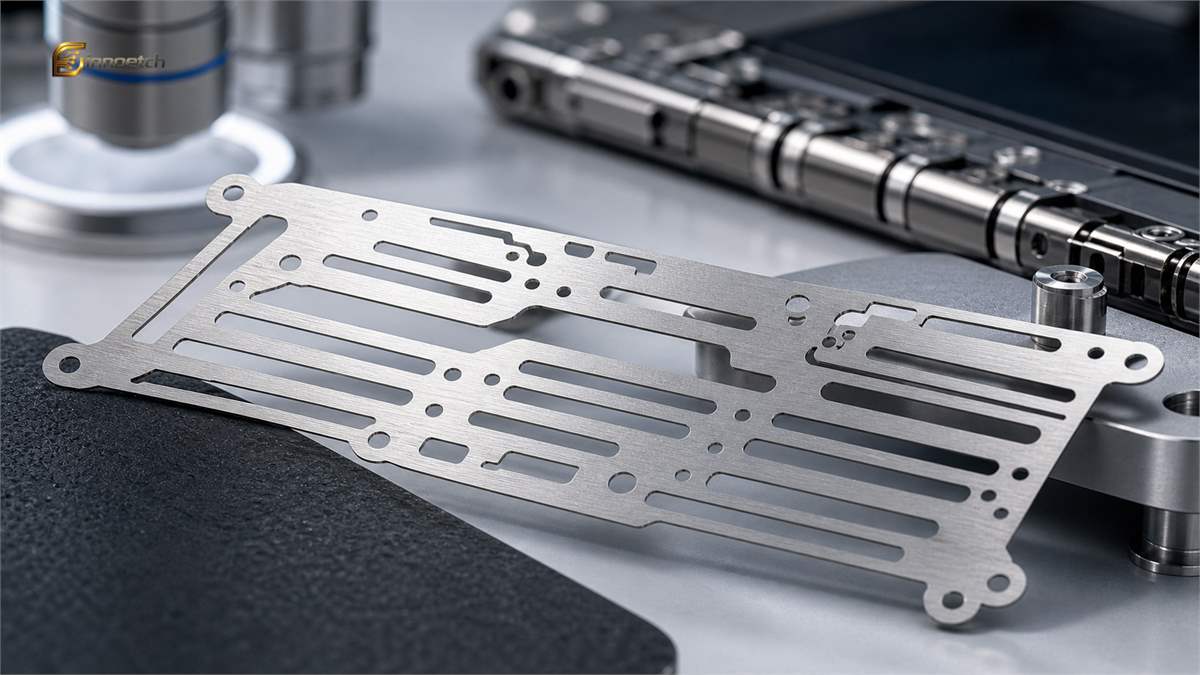

The etched support plate can be designed with different functional zones. Dense slot patterns can improve local flexibility, while solid reinforcement zones can support screw positions or load-bearing areas. Mounting holes and alignment features can be integrated into the same etched part, reducing secondary machining.
This design approach helps achieve:
Innoetch provides precision metal etching for ultra-thin stainless steel parts used in high-density electronic structures. For foldable phone hinge support plates, our process helps engineers move quickly from CAD design to functional samples.
Key advantages include:
Burr-free quality
Smooth etched edges are important near flexible displays, films, and hinge components.
High pattern accuracy
Fine slots, holes, and relief structures can be formed with strong dimensional repeatability.
No hard tooling required
Design iterations can be made faster than traditional stamping during early R&D.
Thin material compatibility
Chemical etching is suitable for delicate stainless steel sheets that may deform under mechanical cutting.
Custom structure design
Each support plate can be tailored to hinge layout, screen stack, screw positions, and assembly constraints.
A foldable phone hinge support plate usually requires multiple design iterations. Engineers may need to adjust slot density, plate thickness, support bridge width, and mounting features according to mechanical testing results.
Innoetch can support this process by reviewing drawings, evaluating etching feasibility, and producing prototype samples for validation. After the design is confirmed, the process can be scaled for small-batch or production-level manufacturing.
Customers can provide:
Ultra-thin stainless steel etched hinge support plates are a practical solution for foldable smartphone structures that require strength, flexibility, compact size, and clean edge quality. For Huawei foldable phone-level applications, chemical etching enables complex support patterns without mechanical stress or hard tooling.
With precision metal etching, Innoetch helps electronics manufacturers develop reliable hinge support plates for foldable screens, from R&D samples to manufacturable structural components.
Application Case: Chemically Etched Ultra-Thin Stainless Steel Hinge Support Plates for Huawei Foldable Phone-Level Designs is widely used in precision metal etching applications where clean edges, tight tolerances, complex patterns and stable performance are required. Typical industries include electronics, semiconductors, sensors, fuel cells, acoustic components, EMI shielding, thermal management and precision mechanical parts.
Application Case: Chemically Etched Ultra-Thin Stainless Steel Hinge Support Plates for Huawei Foldable Phone-Level Designs is a precision metal component manufactured by photochemical etching for applications requiring accurate dimensions, smooth edges and reliable performance.
Common materials include stainless steel, copper, brass, nickel silver, titanium, aluminum and other thin metal sheets depending on the application requirements.
INNOETCH can process thin metal materials from approximately 0.02 mm to 1.5 mm, depending on material type, part structure and tolerance requirements.
For many precision etched parts, tolerances can reach ±0.01 mm to ±0.05 mm, depending on material thickness, design complexity and production volume.
Chemical etching does not require expensive hard tooling and can produce fine patterns, complex shapes and burr-free edges without mechanical deformation.
Yes. INNOETCH supports custom drawings, materials, thicknesses, hole patterns, surface finishes, dimensions and prototype-to-mass-production requirements.
2D drawings, DXF files, DWG files, STEP files, material requirements, thickness, tolerance, quantity and application details are recommended for accurate quotation.
You can send your drawings and technical requirements to INNOETCH. Our engineering team will review the design and provide a quotation.
