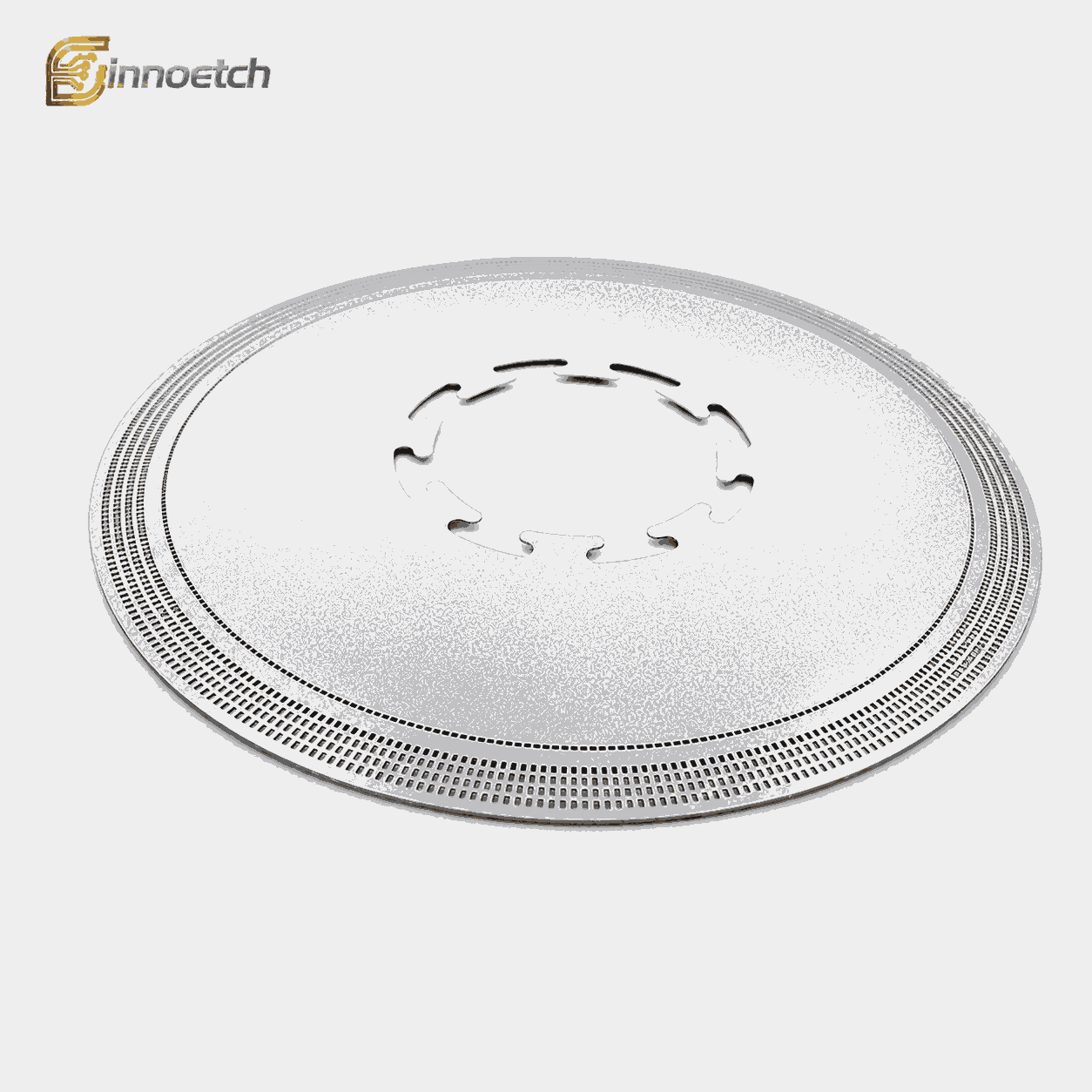

Motor Encoder Disc is a precision metal encoding component used in motor control, optical encoders, angle detection, position feedback, and precision sensing systems. It is commonly manufactured from stainless steel, copper alloy, nickel alloy, or other m
Motor Encoder Disc is a precision metal functional component widely used in motor control and position detection systems. Its main function is to work with optical sensors, magnetic sensors, or encoder assemblies to detect motor speed, rotation angle, movement direction, and position changes, helping improve equipment control accuracy and operating stability.
In encoder and motor control systems, line accuracy, pitch consistency, hole distribution, roundness, flatness, and surface quality directly affect signal reading accuracy and feedback stability. Uneven lines, burrs, or excessive dimensional deviation may cause signal errors, positioning inaccuracy, or unstable encoder output. Therefore, motor encoder discs require high processing accuracy, smooth edge quality, and reliable batch consistency.
This product can be customized using stainless steel, copper alloy, nickel alloy, aluminum alloy, or other metal materials according to customer requirements. Stainless steel provides good mechanical strength, corrosion resistance, and dimensional stability, making it suitable for long-term use in motors and industrial control equipment. Copper alloy and nickel alloy can be selected for applications requiring conductivity, wear resistance, or specific surface performance. Outer diameter, inner hole, thickness, tooth count, line count, positioning holes, mounting holes, and special profiles can all be customized according to the design.
Through precision metal etching, high-accuracy light slots, scale lines, teeth, micro-holes, positioning holes, and complex patterns can be produced on thin metal sheets. Compared with traditional stamping or machining, chemical etching is better suited for thin metal encoder discs, fine scale lines, dense patterns, small-batch development, and high-precision customization. The process also helps reduce mechanical stress deformation, maintaining better flatness, roundness, and dimensional consistency.
Innoetch supports the custom development of different types of motor encoder discs and encoder metal wheels based on customer drawings, including optical encoder discs, incremental encoder discs, absolute encoder discs, angle sensor discs, metal scale discs, motor feedback discs, and custom precision positioning discs. Products can also be supplied with single-sided etching, double-sided etching, half-etched structures, surface cleaning, deburring, passivation, plating, or other post-processing services according to customer requirements.
This type of product is widely used in servo motors, stepper motors, encoders, angle sensors, robotics, automation equipment, instruments, industrial control systems, medical devices, and precision measurement equipment. For customers who require high-precision scale lines, stable signal output, good flatness, and customized structures, precision etched motor encoder discs provide a reliable, flexible, and scalable metal manufacturing solution.
Innoetch provides custom motor encoder disc and encoder metal disc manufacturing services using precision metal etching technology to produce high-precision, clean-edged, and dimensionally stable stainless steel optical encoder discs, angle sensor discs, and custom precision metal parts.
Motor Encoder Disc is widely used in precision metal etching applications where clean edges, tight tolerances, complex patterns and stable performance are required. Typical industries include electronics, semiconductors, sensors, fuel cells, acoustic components, EMI shielding, thermal management and precision mechanical parts.
Motor Encoder Disc is a precision metal component manufactured by photochemical etching for applications requiring accurate dimensions, smooth edges and reliable performance.
Common materials include stainless steel, copper, brass, nickel silver, titanium, aluminum and other thin metal sheets depending on the application requirements.
INNOETCH can process thin metal materials from approximately 0.02 mm to 1.5 mm, depending on material type, part structure and tolerance requirements.
For many precision etched parts, tolerances can reach ±0.01 mm to ±0.05 mm, depending on material thickness, design complexity and production volume.
Chemical etching does not require expensive hard tooling and can produce fine patterns, complex shapes and burr-free edges without mechanical deformation.
Yes. INNOETCH supports custom drawings, materials, thicknesses, hole patterns, surface finishes, dimensions and prototype-to-mass-production requirements.
2D drawings, DXF files, DWG files, STEP files, material requirements, thickness, tolerance, quantity and application details are recommended for accurate quotation.
You can send your drawings and technical requirements to INNOETCH. Our engineering team will review the design and provide a quotation.
